Low-resistance Graphite Electrodes Rau Lithium-ion roj teeb
Khoom Description
Tsawg-resistance graphite electrodes rau lithium-ion roj teeb xa mus rau ib hom electrode uas yog siv nyob rau hauv cov txheej txheem ntawm lithium-ion roj teeb. Cov electrodes no yog tsim los ntawm cov khoom siv graphite zoo thiab tsim kom muaj kev tiv thaiv qis, uas tso cai rau kev hloov pauv hluav taws xob zoo hauv lub roj teeb ntawm tes. Hom electrode no yog qhov tseem ceeb rau kev tsim cov roj teeb lithium-ion uas muaj kev ua haujlwm siab, uas yog siv rau ntau yam kev siv, nrog rau cov neeg siv khoom siv hluav taws xob, hluav taws xob tsheb, thiab lub zog cia. Los ntawm kev siv cov graphite electrodes uas tsis tshua muaj siab, cov tuam txhab tsim khoom tuaj yeem tsim cov roj teeb uas muaj kev ua tau zoo dua qub, lub neej voj voog ntev dua, thiab lub sijhawm them nyiaj sai dua.
Cov khoom parameter
UHP 500 rau 700MM graphite electrodetxoj kab uas hla thiab tso cai sib txawv.
|
UNIT (MM) |
||||
|
Lub npe |
Nominal Dia mm |
Qhov tseeb Qhov siab tshaj plaws Txoj kab uas hla mm |
Qhov tseeb Yam tsawg kawg nkaus Txoj kab uas hla mm |
Nominal Ntev mm |
|
UHP Graphite electrode |
500
|
511 |
505
|
1800/2000/2200/2400 |
|
550 |
562 |
556 |
1800/2000/2200/2400/2700 |
|
|
600 |
613 |
607 |
2000/2200/2400/2700/3000 |
|
|
650 |
663 |
659 |
2200/2400/2700/3000 |
|
|
700 |
714 |
710 |
2200/2400/2700/3000 |
|
UHP 500 rau 700MM graphite electrode tam sim no load
|
Grade |
Nominal Dia mm |
Tso cai tam sim no A |
Tam sim no ceev A/c㎡ |
||
|
AC |
DC |
AC |
DC |
||
|
UHP graphite electrode |
500 |
40000-60000 |
－ |
20-30 |
- |
|
550 |
45000-68000 |
49000-78000 |
18-28 |
20-32 |
|
|
600 |
52000-81000 |
58000-93000 |
18-28 |
20-32 |
|
|
650 |
60000-85000 |
64000-100000 |
18-28 |
20-32 |
|
|
700 |
71000-100000 |
79000-120000 |
18-27 |
20-30 |
|
Kev siv ntau lawm
Kev siv cov graphite electrodes hauv lithium-ion roj teeb ntau lawm
Txheej ntawm anode thiab cathode cov ntaub ntawv nrog graphite: Graphite yog siv los ua txheej txheej rau ob qho tib si anode thiab cathode cov ntaub ntawv los txhim kho lawv cov conductivity thiab stability.
Kev tsim cov electrode pastes: Graphite kuj tseem siv los tsim cov khoom siv hluav taws xob siv hauv kev tsim cov roj teeb lithium-ion.
Kev tsim cov khoom siv roj teeb: Graphite yog siv los tsim ntau yam roj teeb xws li cov roj teeb tam sim no, cov khoom siv anode, thiab cov ntaub ntawv cathode.
Electrolyte solutions: Graphite tuaj yeem siv los ua ib feem ntawm cov tshuaj electrolyte siv hauv cov roj teeb lithium-ion.
Conductive additives: Graphite kuj tseem siv tau los ua cov khoom siv hluav taws xob hauv cov roj teeb lithium-ion los txhim kho cov khoom siv hluav taws xob.
Cov txheej txheem ntau lawm ntawm Graphite electrode

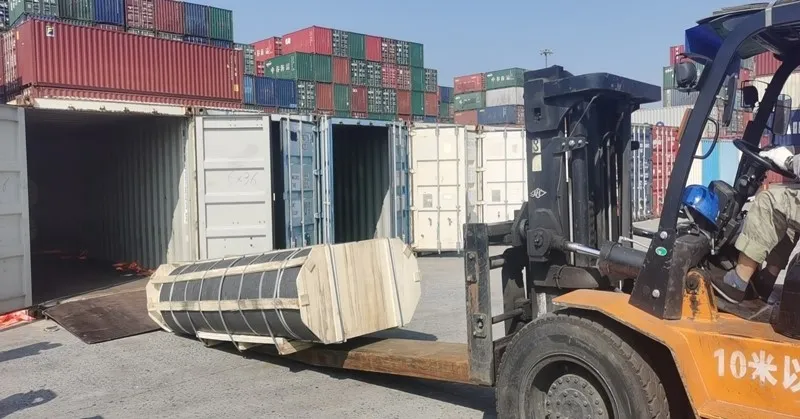

Packing thiab Shipping
Ua tiav Graphite Electrodes tau ntim raws li cov neeg siv khoom xav tau, xa los ntawm cov thawv lossis cov tsheb thauj khoom, thiab muab kev pabcuam zoo tom qab muag.
FAQ
1. Koj puas yog Chaw Tsim Khoom lossis Lag Luam?
Peb yog cov chaw tsim khoom, peb muaj peb lub Hoobkas.
2. Thaum twg kuv tuaj yeem tau txais tus nqi?
Peb feem ntau hais tsis pub dhau 8 teev tom qab tau txais koj cov lus qhia ntxaws, xws li qhov loj me, ntau thiab lwm yam.Yog tias nws yog qhov kev txiav txim ceev, koj tuaj yeem hu rau peb ncaj qha.
3. Yuav ua li cas txog lub sij hawm ua cov khoom loj?
Lub sij hawm txhuas yog nyob ntawm qhov ntau, txog 7-12hnub.Rau cov khoom lag luam graphite, thov cov khoom siv dual-siv daim ntawv tso cai xav tau txog 15-20 hnub ua haujlwm.
4. Koj cov nqe lus ntawm kev xa khoom yog dab tsi?
Peb txais FOB, CFR, CIF, EXW, DAP, DDP, thiab lwm yam.Koj tuaj yeem xaiv txoj kev yooj yim tshaj plaws rau koj. Tsis tas li ntawd, peb tuaj yeem xa khoom los ntawm Cua thiab Express.
5. Koj puas muab cov qauv?
Yog lawm, cov qauv muaj rau koj.
6. Cov khoom ntim khoom?
Peb tau ntim rau hauv rooj plaub ntoo, lossis raws li koj xav tau.
Cim npe nrov: Tsis tshua muaj siab graphite electrodes rau lithium-ion roj teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, quotation, luv nqi, Tshuag, hauv Suav teb
